A Vertical Lathe Machine (also called a Vertical Turning Lathe, or VTL) is a type of lathe where the spindle axis is oriented vertically, rather than horizontally. These machines are particularly suited for machining large, heavy, and awkwardly shaped workpieces.
Max. Voyage sur l'axe X :
1700mmMax. Voyage sur l'axe Y :
820mmMax. Voyage sur l'axe Z :
750mmPoids maximum des pièces :
1500KGApplication :
Precision Mold, Auto PartsTraitement :
Surface Milling, Drilling Holes, Tapping，Heavy CuttingVertical Lathe Structural Characteristics
 |
Ultra-high performance machining center 1. Use a 24T disc tool magazine to improve processing efficiency. 2. Both X/Y axes are equipped with high-power motors as standard, and the Z axis uses a larger motor. The Z axis adds nitrogen balance, which enables fast and accurate positioning and reduces vibration. 3. The spindle motor is equipped with a 15-18.5 KW high-torque generalized motor as standard. The spindle torque is significantly improved compared with other brands of the same type, which is very suitable for heavy cutting.
|
Optical Machine Characteristics
1. Adopt Rexroth linear rail;
2. Extra large span on the Y axis;
3. X-axis 6 slide support, strong rigidity to ensure powerful cutting;
4. The three axes use NSK original bearings (3062), 3+2 mode, pre-tensioned to prevent thermal displacement;
5. BBT 5 0 spindle ring spray design;
6. Adopting Taiwan's original ultra-high speed knife-beating cylinder, the knife-beating time can reach 0.28s;
7. The machine tool bed is made of HT300 high-grade cast iron.
Vertical Lathe Parameters

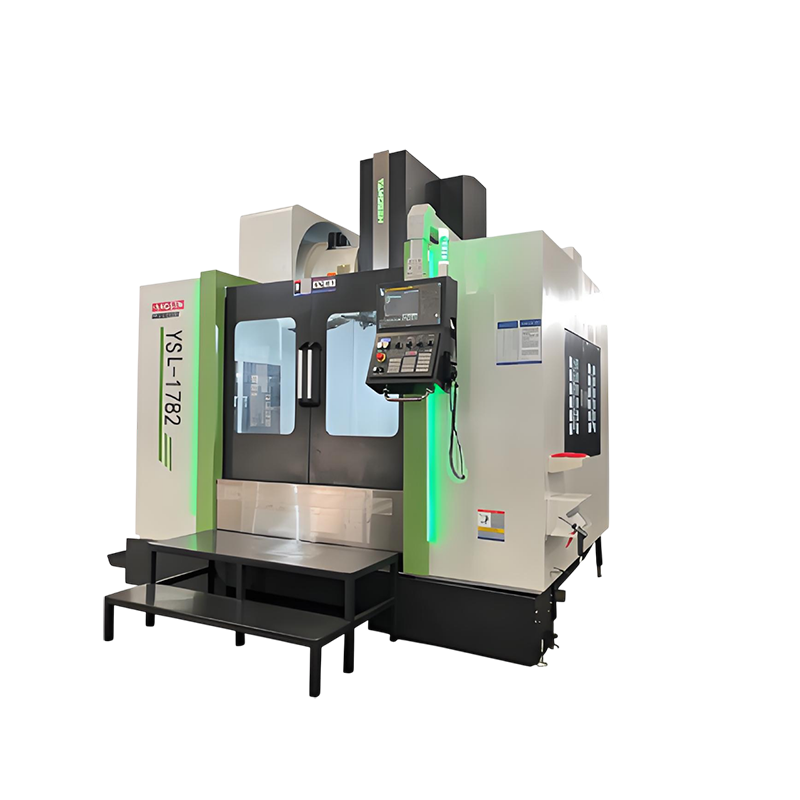

| Item | Specification | unit | YSL-1782 |
| Trave | X/Y/Z axis | mm | 1700/820/750 |
| Distance from spindle nose to worktable | mm | 150-900 | |
| Distance from spindle center to column track | mm | 880 | |
| Track form | Linear Guides | ||
| Worktable | Workbench size (L*W) | mm | 1800*800 |
| Maximum load-bearing capacity of the workbench | kg | 1500 | |
| T-Slot | No/mm | 7 -22*110 | |
| Spindle | Spindle taper hole (model/installation dimensions) | mm | BBT50 |
| Spindle speed | rpm | 6000 | |
| Maximum speed | rpm | 4500 | |
| Spindle drive mode | Gearbox | ||
| Feed | X/Y/Z axis rapid feed | m/min | 24/24/24 |
| Maximum cutting feed | mm/ min | 10000 | |
| Tool Change | Tool changing method | Side mount | |
| Tool handle specifications | type | BT50 | |
| Tool capacity | tools | twenty four | |
| Maximum tool diameter (cutting tool) | mm | 105 | |
| Maximum tool diameter (without tool) | mm | 200 | |
| Maximum tool length | mm | 350 | |
| Maximum tool weight | kg | 15 | |
| Fastest tool change time | sec | 4.9 | |
| Motor | Spindle motor | kw | βiIP 30 / 8000 |
| Three-axis servo motor | kw | Βis 40 / 2 000 | |
| Βis 40 / 2 000 | |||
| Βis 40B / 2 000 | |||
| Cutting water pump motor | m/hm | 4-30 | |
| Accuracy | Positioning accuracy | mm | ±0.005 |
| Repeat positioning accuracy | mm | ±0.003 | |
| Power requirements | Power requirements | kv | 30 |
| Air source requirements | Kg/cm | 6~8 | |
| Machine size | Length*Width*Height | mm | 4800*3800*3800 |
| weight | t | 13 |
